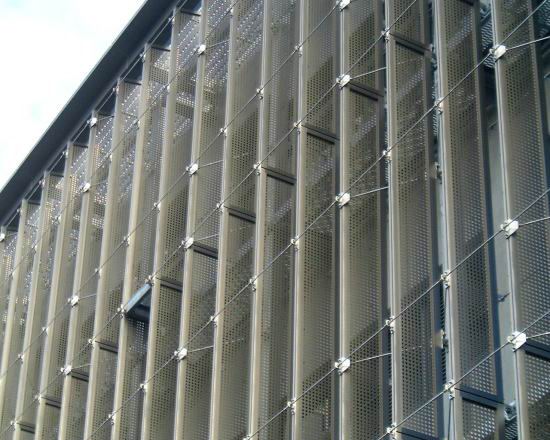

A combination of extruded components and a skin results in the Aeroscreen perforated wing-shaped fin, allowing an optimal solar control combined with light control and a better outside view.

The fixed fin support structure has been designed to accommodate any angle between 0° and 180° with increments of 5 degrees. The fin angle can be set during installation. For the fixed fin system each fin is ‘snapped’ into position by sliding the U-profile section over the fin suspension. The fast and easy installation, requires a minimum of tools.

The Aeroscreen fins consists of aluminium extrusions with a wall thickness ≥ 1.8 mm and a 1.0 mm thick perforated preformed skin. For the adjustable system the fins are closed with endcaps made from aluminium plates of 3 to 4 mm thickness. All fixation materials are stainless steel. For the support structure you can choose either aluminium or galvanised steel. For the fixed system the fixation disc and the fin suspension are made of Nylon (PA6.6) filled with fibre glass. The sliding U-profile is extruded aluminium. For the adjustable system the bearing block is made of Polyethylene (HDPE) with a stainless steel axle and an axle lock made of Nylon (PA6.6) filled with fibre glass. The end cap connector is made of stainless steel and for the driving rod there is a choice of aluminium or steel.
